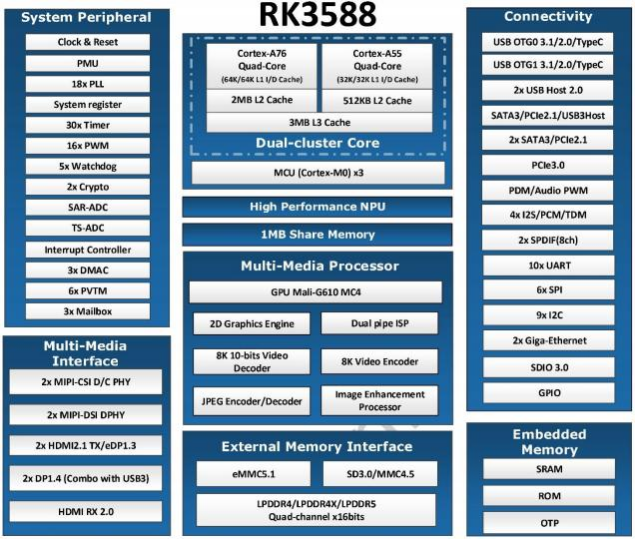

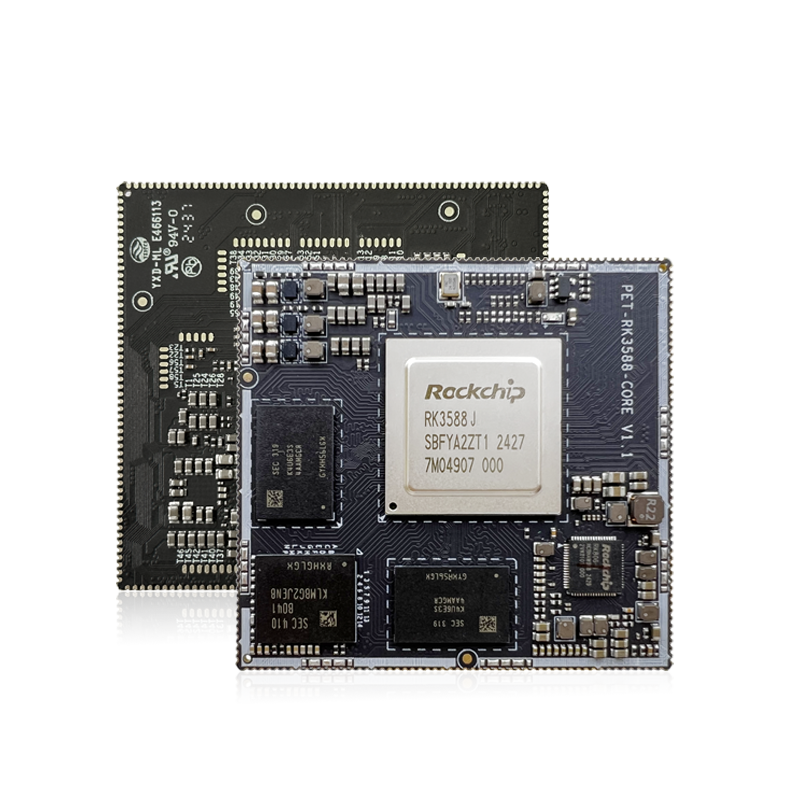

处理器

RK3588  八核，四核 Cortex-A76 四核 Cortex-A55 ，64 位 ARM64 ，最高主频 2.0G

内置 NPU

RKNN NPU ，6TOPS 算力，用于 AI 计算

内置 GPU

ARM Mali-G610 MC4，支持 OpenCL 2.0 ，OpenGLES 1.1 、2.0 、3.2 ，Vulkan1.2

内置视频编解码

支持 8K@60fps H265 格式硬解码、8K@30fps 硬编码

内存 LPDDR4

4GB / 8GB / 16GB / 32GB ，标配 4GB

存储 EMMC

32GB / 64GB / 128GB / 256GB ，标配 32GB

操作系统

支持安卓 Android 12 、Buildroot Linux 、Debian11 、Ubuntu 22.04

PET-RK3588 核心板引脚功能

LVDS 显示输出

双 8 双通道 1920x1080（通过底板 MIPI 转 LVDS 芯片实现），也支持单 8 单通道

eDP 显示输出

支持两个 eDP 显示屏，最大支持分辨率 3840x2160

MIPI 显示输出

支持两个 MIPI 显示屏，最大支持分辨率 3840x2160

HDMI 显示输出

支持两个 HDMI 显示屏，最大支持分辨率 7680x4320

DP 显示输出

支持两个 DP 显示屏，最大支持分辨率 7680x4320

RGB 显示输出

最大支持分辨率 1920x1080

按键接口

电源键、烧写键、复位键、ADC 按键、GPIO 按键、GPIO 矩阵键盘

千兆以太网接口

2 路

USB 接口

3 路 USB3.0、2 路 USB2.0、OTG 1 路；用于 USB 外设、4G/5G 模组、USB 摄像头等

SDIO 接口

2 路，可用于 TF 卡、WIFI 蓝牙模组等

SPI 接口

5 路

SARADC 接口

8 路，12bit / 1MSPS / 12MHz 频率；用于 ADC 按键、ADC 输入检测，最高电压 1.8V

I2C 接口

9 路，用于电容触摸屏/RTC/NFC/I2C 外设等

UART 串口

10 路

I2S 接口

3 路

PWM 接口

16 路，用于 IR 红外输入、PWM 输出、显示屏背光控制等

CAN 接口

2 路

PCIE3.0 接口

2 路，4 Lane；可用于 M2 电子盘等

PCIE2.1 接口

3 路，2 Lane；可用于 M2 电子盘等

SATA 接口

2 路，可用于 SATA 固态盘

看门狗

1 个，CPU 内置

SPDIF 输出

2 路，8 通道

PDM 输入

1 路，8 通道

GPIO/中断

多路

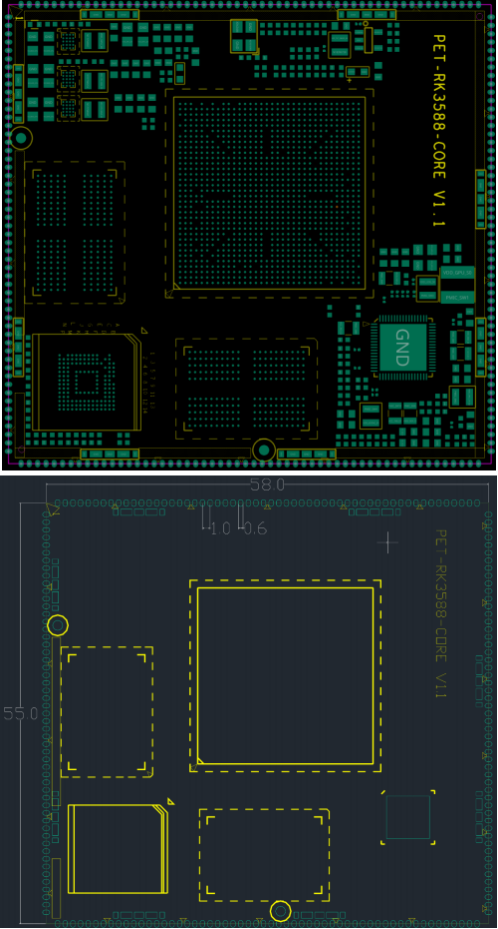

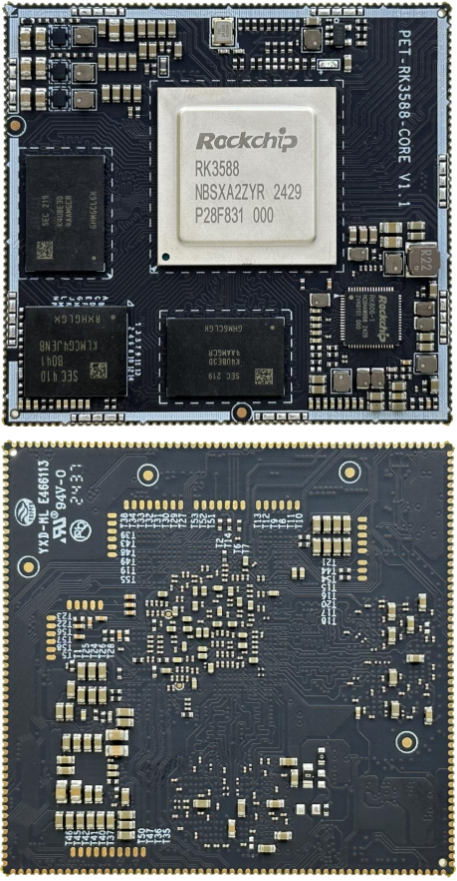

PET-RK3588 核心板结构参数

尺寸

63 x 50 mm，厚度 1.2mm

邮票孔间距

1.0mm

引脚数

274 pin

PCB 工艺

八层板，沉金工艺

1

VCC4V0_SYS

4V 电源输入

2

VCCA_3V3_S0

3.3V 电源输出

3

VCC_1V8_S0

1.8V 电源输出

4

VCC_3V3_S3

3.3V 电源输出

5

VCC_1V8_S3

1.8V 电源输出

6

GND

电源地

7

GND

电源地

8

PCIE30_PORT0_TX0P

M2 电子盘(PCIE)

PCIE30_PORT0_TX0P

9

PCIE30_PORT0_TX0N

PCIE30_PORT0_TX0N

10

PCIE30_PORT0_TX1P

PCIE30_PORT0_TX1P

11

PCIE30_PORT0_TX1N

PCIE30_PORT0_TX1N

12

PCIE30_PORT1_RX2P

PCIE30_PORT1_RX2P

13

PCIE30_PORT1_RX2N

PCIE30_PORT1_RX2N

14

PCIE30_PORT1_RX3P

PCIE30_PORT1_RX3P

15

PCIE30_PORT1_RX3N

PCIE30_PORT1_RX3N

16

PCIE30_PORT1_TX2P

PCIE30_PORT1_TX2P

17

PCIE30_PORT1_TX2N

PCIE30_PORT1_TX2N

18

PCIE30_PORT1_TX3P

PCIE30_PORT1_TX3P

19

PCIE30_PORT1_TX3N

PCIE30_PORT1_TX3N

20

PCIE30_PORT1_REFCLKN_IN

PCIE30_PORT1_REF_CLKN

21

PCIE30_PORT1_REFCLKP_IN

PCIE30_PORT1_REF_CLKP

22

GPIO0_C6_u

GPIO(LCD 复位)

I2S1_SDI1_M1/NPU_AVS/UART0_RTSN/PWM5_M1/SPI0_CLK_M0/PCIE30X4_CLKREQN_M0/SATA_CP_POD /GPIO0_C6_u

23

GPIO0_C5_u

GPIO(LCD 背光)

I2S1_SDI0_M1/GPU_AVS/UART0_TX_M0/I2C4_SCL_M2/DP1_HPDIN_M1/PWM4_M0/PCIE30X1 0 PERSTN_ M0/GPIO0_C5_u

25

GPIO1_C4_d

GPIO(LCD 电源)

PDM0_CLK1_M0/I2C2_SDA_M3/PWM11_IR_M2/SPI4_CS1_M0/GPIO1_C4_d

26

I2C6_SDA_M0_TP

I2C6(触摸屏)

I2S1_SDI2_M1/PDM0_SDI0_M1/I2C6_SDA_M0/UART1_RTSN_M2/PWM6_M0/SPI0_MISO_M0/PCIE30X4_W AKEN_M0/GPIO0_C7_d

27

I2C6_SCL_M0_TP

I2S1_SDI3_M1/PDM0_SDI1_M1/I2C6_SCL_M0/UART1_CTSN_M2/PWM7_IR_M0/SPI3_MISO_M2/PCIE30X4_ PERSTN_M0/GPIO0_D0_d

28

GPIO3_C1_d

GPIO(TP 复位)

GMAC1_PPSCLK/PCIE30X2_BUTTON_RSTN/UART7_RX_M1/SPI1_CLK_M1/GPIO3_C1_d

29

GPIO3_C0_d

GPIO(TP 中断)

GMAC1_PPSTRIG/I2C3_SDA_M1/UART7_TX_M1/SPI1_MISO_M1/GPIO3_C0_d

30

SDIO_D2_M0_WIFI

SDIO(WIFI)

GMAC0_RXCLK/SDIO_D2_M0/FSPI_D2_M1/I2C8_SCL_M1/UART6_RTSN_M0/GPIO2_B0_u

31

SDIO_D1_M0_WIFI

GMAC0_RXD3/SDIO_D1_M0/FSPI_D1_M1/UART6_TX_M0/GPIO2_A7_u

32

SDIO_D0_M0_WIFI

GMAC0_RXD2/SDIO_D0_M0/FSPI_D0_M1/UART6_RX_M0/GPIO2_A6_u

33

SDIO_CLK_M0_WIFI

GMAC0_TXCLK/SDIO_CLK_M0/FSPI_CLK_M1/I2C3_SDA_M3/GPIO2_B3_d

34

SDIO_D3_M0_WIFI

GMAC0_TXD2/SDIO_D3_M0/FSPI_D3_M1/I2C8_SDA_M1/UART6_CTSN_M0/GPIO2_B1_u

35

SDIO_CMD_M0_WIFI

GMAC0_TXD3/SDIO_CMD_M0/I2C3_SCL_M3/GPIO2_B2_u

36

WIFI_REG_ON_H

GPIO(WIFI 开关)

CLK32K_OUT1/GPIO2_C5_d

37

GPIO4_C3_d

GPIO

GMAC0_MCLKINOUT/I2S2_SDO_M0/I2C7_SCL_M1/PWM4_M1/SPI3_CS1_M0/GPIO4_C3_d

38

GPIO2_C3_d

GPIO

ETH0_REFCLKO_25M/I2S2_SDI_M0/I2C6_SCL_M2/SPI1_CS0_M0/GPIO2_C3_d

39

GPIO2_C0_d

GPIO

GMAC0_TXEN/I2S2_LRCK_M0/I2C2_SDA_M1/UART1_RTSN_M0/SPI1_CLK_M0/GPIO2_C0_d

40

GPIO2_B5_u

GPIO(唤醒 BT)

GMAC0_PPSTRING/FSPI_CS1N_M1/HDMI_TX1_SCL_M0/I2C4_SCL_M1/UART7_TX_M0/GPIO2_B5_u

41

GPIO1_A7_u

GPIO(4G 复位)

PDM1_SDI0_M1/PCIE30X1 1 PERSTN_M2/PWM3_IR_M3/SPI2_CS0_M0/GPIO1_A7_u

42

UART9_RX_M0_BT

UART9(BT)

GMAC0_PPSCLK/TEST_CLKOUT_M1/HDMI_TX1_CEC_M0/UART9_RX_M0/SPI1_CS1_M0/GPIO2_C4_d

43

UART9_TX_M0_BT

GMAC0_RXD1/I2C6_SDA_M2/UART9_TX_M0/SPI1_MOSI_M0/GPIO2_C2_d

44

UART9_RTSn_M0_BT

GMAC0_MDC/I2C7_SDA_M1/UART9_RTSN_M0/PWM5_M2/SPI3_MISO_M0/GPIO4_C4_d

45

UART9_CTSn_M0_BT

GMAC0_MDIO/I2C0_SCL_M1/UART9_CTSN_M0/PWM6_M2/SPI3_MOSI_M0/GPIO4_C5_d

46

GPIO2_B6_d

UART1

GMAC0_TXD0/I2S2_MCLK_M0/I2C5_SCL_M4/UART1_RX_M0/GPIO2_B6_d

47

GPIO2_B7_d

GMAC0_TXD1/I2S2_SCLK_M0/I2C5_SDA_M4/UART1_TX_M0/GPIO2_B7_d

48

UART2_RX_M0_DEBUG

UART2 调试串口

I2S1_SCLK_M1/JTAG_TMS_M2/I2C1_SDA_M0/UART2_RX_M0/PCIE30X1 1 WAKEN_M0/GPIO0_B6_d

50

GPIO1_D2_d

UART4

I2S0_SDO3/I2S0_SDI2/PDM0_SDI2_M0/I2C1_SCL_M4/UART4_TX_M0/PWM0_M1/SPI1_CLK_M2/GPIO1_D2 _d

51

GPIO1_D3_d

I2S0_SDI1/PDM0_SDI3_M0/I2C1_SDA_M4/UART4_RX_M0/PWM1_M1/SPI1_CS0_M2/GPIO1_D3_d

52

GPIO1_B4_u

UART7

PDM1_CLK0_M1/PCIE30X1 0 PERSTN_M2/UART7_RX_M2/SPI0_CS0_M2/GPIO1_B4_u

53

GPIO1_B5_u

PCIE30X1 0 CLKREQN_M2/UART7_TX_M2/SPI0_CS1_M2/GPIO1_B5_u

54

GPIO1_A0_d

UART6

PCIE30X1 1 CLKREQN_M2/DP0_HPDIN_M2/I2C2_SDA_M4/UART6_RX_M1/SPI4_MISO_M2/GPIO1_A0_d

55

GPIO1_A1_d

PCIE30X1 1 WAKEN_M2/DP1_HPDIN_M2/SATA1_ACT_LED_M1/I2C2_SCL_M4/UART6_TX_M1/SPI4_MOSI_ M2/GPIO1_A1_d

56

GPIO1_A2_d

GPIO(NFC)

VOP_POST_EMPTY/I2C4_SDA_M3/UART6_RTSN_M1/PWM0_M2/SPI4_CLK_M2/GPIO1_A2_d

57

GPIO1_A3_d

GPIO(NFC)

HDMI_TX1_SDA_M2/I2C4_SCL_M3/UART6_CTSN_M1/PWM1_M2/SPI4_CS0_M2/GPIO1_A3_d

58

I2C7_SDA_M0_CODEC

I2C7(CODEC)

I2S0_SDO2/I2S0_SDI3/PDM0_SDI1_M0/I2C7_SDA_M0/UART6_RX_M2/SPI1_MOSI_M2/GPIO1_D1_d

59

I2C7_SCL_M0_CODEC

I2S0_SDO1/I2C7_SCL_M0/UART6_TX_M2/SPI1_MISO_M2/GPIO1_D0_d

60

I2S0_MCLK

I2S0(CODEC)

I2S0_MCLK/I2C6_SDA_M1/UART3_RTSN/PWM3_IR_M2/SPI4_CLK_M0/GPIO1_C2_d

61

I2S0_SCLK_TX

I2S0_SCLK/I2C6_SCL_M1/UART3_CTSN/PWM7_IR_M2/SPI4_CS0_M0/GPIO1_C3_d

62

I2S0_LRCK_TX

I2S0_LRCK/I2C2_SCL_M3/UART4_RTSN/GPIO1_C5_d

63

I2S0_SDO0

I2S0_SDO0/I2C4_SCL_M4/UART4_CTSN/GPIO1_C7_d

64

I2S0_SDI0

I2S0_SDI0/GPIO1_D4_d

65

GPIO1_B3_d

GPIO(喇叭)

PDM1_CLK1_M1/PCIE30X1 0 WAKEN_M2/SATA0_ACT_LED_M1/UART4_TX_M2/SPI0_CLK_M2/GPIO1_B3_d

66

GND

电源地

67

RTC_INT_L

GPIO(RTC)

I2S1_SDO2_M1/PDM0_SDI2_M1/PWM3_IR_M0/I2C1_SCL_M2/HDMI_TX0_SDA_M1/SPI3_CS0_M2/PCIE30X 2_PERSTN_M0/SATA_CPDET/GPIO0_D4_u

68

RTC_32K_IN

32.768K 输入

CLK32K_IN/CLK32K_OUT0/GPIO0_B2_u

69

SDMMC_DET_L

SDMMC0(TF 卡)

SDMMC_DET/GPIO0_A4_u

70

SDMMC0_D1

SDMMC_D1/PDM1_SDI2_M0/JTAG_TMS_M1/I2C3_SDA_M4/UART2_RX_M1/PWM9_M1/GPIO4_D1_u

71

SDMMC0_D0

SDMMC_D0/PDM1_SDI3_M0/JTAG_TCK_M1/I2C3_SCL_M4/UART2_TX_M1/PWM8_M1/GPIO4_D0_u

72

SD_CLK

SDMMC_CLK/PDM1_CLK0_M0/TEST_CLKOUT_M0/MCU_JTAG_TMS_M0/UART5_TX_M0/CAN0_RX_M1 /GPIO4_D5_d

74

SDMMC0_D3

SDMMC0(TF 卡)

SDMMC_D3/PDM1_SDI0_M0/JTAG_TMS_M0/I2C8_SDA_M0/UART5_RTSN_M0/PWM10_M1/GPIO4_D3_u

75

SDMMC0_D2

SDMMC_D2/PDM1_SDI1_M0/JTAG_TCK_M0/I2C8_SCL_M0/UART5_CTSN_M0/GPIO4_D2_u

76

GPIO0_D5_u

GPIO(HDMI 输入)

I2S1_SDO3_M1/CPU_BIG1_AVS/I2C1_SDA_M2/HDMI_TX0_SCL_M1/SPI3_CS1_M2/SATA_MP_SWITCH/GPIO 0_D5_u

77

HDMIIRX_HPDOUT_H

HDMI 输入

HDMI_TX0_HPD_M1/PCIE30X2_PERSTN_M2/HDMI_RX_HPDIN_M1/MCU_JTAG_TCK_M1/UART9_RX_M2/SP I0_CS0_M3/GPIO3_D4_d

78

HDMI_RX_SDA_M1

CIF_D15/PCIE30X2_WAKEN_M2/HDMI_RX_SDA_M1/I2C7_SDA_M2/UART9_CTSN_M2/PWM10_M2/SPI0_C LK_M3/GPIO3_D3_d

79

HDMI_RX_SCL_M1

CIF_D14/PCIE30X2_CLKREQN_M2/HDMI_RX_SCL_M1/I2C7_SCL_M2/UART9_RTSN_M2/SPI0_MOSI_M3/GPI O3_D2_d

80

HDMI_RX_CEC

BT1120_D11/PCIE30X4_WAKEN_M1/HDMI_RX_CEC_M0/SATA1_ACT_LED_M0/UART9_RX_M1/PWM12_M1 /SPI3_MISO_M1/GPIO4_B5_d

81

HDMI_RX_CLKN

HDMI_RX_CLKN

82

HDMI_RX_CLKP

HDMI_RX_CLKP

83

HDMI_RX_D0N

HDMI_RX_D0N

84

HDMI_RX_D0P

HDMI_RX_D0P

85

HDMI_RX_D1N

HDMI_RX_D1N

86

HDMI_RX_D1P

HDMI_RX_D1P

87

HDMI_RX_D2N

HDMI_RX_D2N

88

HDMI_RX_D2P

HDMI_RX_D2P

89

GND

电源地

90

HDMI0_TX_SBDN/eDP0_TX_AUXN

eDP 显示屏

HDMI_TX0_SBDN/eDP_TX0_AUXN

91

HDMI0_TX_SBDP/eDP0_TX_AUXP

HDMI_TX0_SBDP/eDP_TX0_AUXP

92

HDMI0_TX3N_PORT/eDP0_TX_D3N

HDMI_TX0_D3N/eDP_TX0_D3N

93

HDMI0_TX3P_PORT/eDP0_TX_D3P

HDMI_TX0_D3P/eDP_TX0_D3P

94

HDMI0_TX0N_PORT/eDP0_TX_D0N

HDMI_TX0_D0N/eDP_TX0_D0N

96

HDMI0_TX1N_PORT/eDP0_TX_D1N

HDMI_TX0_D1N/eDP_TX0_D1N

97

HDMI0_TX1P_PORT/eDP0_TX_D1P

HDMI_TX0_D1P/eDP_TX0_D1P

98

HDMI0_TX2N_PORT/eDP0_TX_D2N

HDMI_TX0_D2N/eDP_TX0_D2N

99

HDMI0_TX2P_PORT/eDP0_TX_D2P

HDMI_TX0_D2P/eDP_TX0_D2P

100

HDMI0_TX_ON_H

HDMI 输出

MIPI_CAMERA0_CLK_M0/SPDIF1_TX_M1/I2S1_SDO0_M0/PCIE30X1 0 BUTTON_RSTN/SATA2_ACT_LED_M 0/I2C6_SCL_M3/UART8_RX_M0/SPI0_CS1_M1/GPIO4_B1_u

101

GPIO1_A5_d

HDMI_TX0_HPD_M0/SPI2_MOSI_M0/GPIO1_A5_d

102

HDMITX0_SDA_M0

BT1120_D14/PCIE20X1 2 WAKEN_M1/HDMI_TX0_SDA_M0/I2C8_SCL_M3/SPI3_CS0_M1/GPIO4_C0_u

103

HDMITX0_SCL_M0

BT1120_D13/PCIE20X1 2 CLKREQN_M1/HDMI_TX0_SCL_M0/I2C5_SDA_M1/SPI3_CLK_M1/GPIO4_B7_u

104

HDMITX0_CEC_M0

BT1120_D15/SPDIF1_TX_M2/PCIE20X1 2 PERSTN_M1/HDMI_TX0_CEC_M0/I2C8_SDA_M3/PWM6_M1/SPI 3_CS1_M1/GPIO4_C1_d

105

PMIC_VDC

上电开机信号输入

106

PWRON_L

电源键

107

BOOT_SARADC_IN0

ROM 键

SARADC_IN0_BOOT

108

GPIO0_D3_u

GPIO(指示灯)

LITCPU_AVS/SPI3_CLK_M2/GPIO0_D3_u

109

GPIO4_B3_u/CAN1_TX

CAN1

CIF_VSYNC/BT1120_D9/I2S1_SDO2_M0/PCIE20X1 2 BUTTON_RSTN/I2C7_SDA_M3/UART8_CTSN_M0/PW M15_IR_M1/GPIO4_B3_u

110

GPIO4_B2_u/CAN1_RX

CIF_HREF/BT1120_D8/I2S1_SDO1_M0/PCIE30X1 1 BUTTON_RSTN/I2C7_SCL_M3/UART8_RTSN_M0/PWM 14_M1/SPI0_CS0_M1/GPIO4_B2_u

111

GPIO3_D0_d

I2C5(NFC)

CIF_D12/PCIE20X1 2 WAKEN_M0/HDMI_TX0_SDA_M2/I2C5_SDA_M0/UART4_RX_M1/PWM8_M2/SPI3_CL K_M3/GPIO3_D0_u

112

GPIO3_C7_d

CIF_D11/PCIE20X1 2 CLKREQN_M0/HDMI_TX0_SCL_M2/I2C5_SCL_M0/SPI3_MOSI_M3/GPIO3_C7_u

113

GPIO4_B5_u

TYPEC0

BT1120_D11/PCIE30X4_WAKEN_M1/HDMI_RX_CEC_M0/SATA1_ACT_LED_M0/UART9_RX_M1/PWM12_M1 /SPI3_MISO_M1/GPIO4_B5_d

114

GPIO4_B6_d

BT1120_D12/PCIE30X4_PERSTN_M1/HDMI_RX_HPDIN_M0/SATA0_ACT_LED_M0/I2C5_SCL_M1/PWM13_M 1/SPI3_MOSI_M1/GPIO4_B6_d

115

GPIO4_C2_d

GMAC0_RXDV_CRS/UART7_RTSN_M0/PWM2_M2/SPI3_CS0_M0/GPIO4_C2_d

117

RESET_L

复位键

118

GPIO4_A5_d

GPIO

CIF_D5/BT1120_D5/I2S1_SDI0_M0/PCIE30X1 0 PERSTN_M1/I2C3_SDA_M2/UART3_TX_M2/SPI2_MOSI_M1 /GPIO4_A5_d

119

GPIO4_A6_d

GPIO

CIF_D6/BT1120_D6/I2S1_SDI1_M0/PCIE30X2_CLKREQN_M1/I2C5_SCL_M2/UART3_RX_M2/SPI2_CLK_M1/G PIO4_A6_d

120

GPIO4_A7_d

GPIO

CIF_D7/BT1120_D7/I2S1_SDI2_M0/PCIE30X2_WAKEN_M1/I2C5_SDA_M2/SPI2_CS0_M1/GPIO4_A7_d

121

GPIO4_A4_d

GPIO

CIF_D4/BT1120_D4/PCIE30X1 0 WAKEN_M1/I2C3_SCL_M2/UART0_RX_M2/SPI2_MISO_M1/GPIO4_A4_d

122

GPIO4_A3_d

GPIO

CIF_D3/BT1120_D3/PCIE30X1 0 CLKREQN_M1/UART0_TX_M2/GPIO4_A3_d

123

GND

电源地

124

TYPEC1_USB20_VBUSDET

TYPEC1_USB20_VBUSDET

125

TYPEC1_USB20_OTG_ID

TYPEC1_USB20_OTG_ID

126

TYPEC1_OTG_DM

USB2.0

TYPEC1_USB20_OTG_DM

127

TYPEC1_OTG_DP

TYPEC1_USB20_OTG_DP

128

TYPEC1_SBU1

DP 显示屏

TYPEC1_SBU1/DP1_AUXP

129

TYPEC1_SBU2

TYPEC1_SBU2/DP1_AUXN

130

TYPEC1_SSRX1N

TYPEC1_SSRX1N/DP1_TX0N

131

TYPEC1_SSRX1P

TYPEC1_SSRX1P/DP1_TX0P

132

TYPEC1_SSTX1P

TYPEC1_SSTX1P/DP1_TX1P

133

TYPEC1_SSTX1N

TYPEC1_SSTX1N/DP1_TX1N

134

TYPEC1_SSRX2N

TYPEC1_SSRX2N/DP1_TX2N

135

TYPEC1_SSRX2P

TYPEC1_SSRX2P/DP1_TX2P

136

TYPEC1_SSTX2P

TYPEC1_SSTX2P/DP1_TX3P

137

TYPEC1_SSTX2N

TYPEC1_SSTX2N/DP1_TX3N

138

TYPEC0_OTG_DM

TYPEC0

TYPEC0_USB20_OTG_DM

139

TYPEC0_OTG_DP

TYPEC0_USB20_OTG_DP

140

TYPEC0_USB20_OTG_ID

TYPEC0_USB20_OTG_ID

142

TYPEC0_SBU1

TYPEC0_SBU1/DP0_AUXP

143

TYPEC0_SBU2

TYPEC0_SBU2/DP0_AUXN

144

TYPEC0_SSRX1N

TYPEC0_SSRX1N/DP0_TX0N

145

TYPEC0_SSRX1P

TYPEC0_SSRX1P/DP0_TX0P

146

TYPEC0_SSTX1P

TYPEC0_SSTX1P/DP0_TX1P

147

TYPEC0_SSTX1N

TYPEC0_SSTX1N/DP0_TX1N

148

TYPEC0_SSRX2N

TYPEC0_SSRX2N/DP0_TX2N

149

TYPEC0_SSRX2P

TYPEC0_SSRX2P/DP0_TX2P

150

TYPEC0_SSTX2P

TYPEC0_SSTX2P/DP0_TX3P

151

TYPEC0_SSTX2N

TYPEC0_SSTX2N/DP0_TX3N

152

GND

电源地

153

MIPI_DPHY1_TX_D0N

MIPI 显示屏 1

MIPI_DPHY1_TX_D0N/MIPI_CPHY1_TX_TRIO0_A

154

MIPI_DPHY1_TX_D0P

MIPI_DPHY1_TX_D0P/MIPI_CPHY1_TX_TRIO0_B

155

MIPI_DPHY1_TX_D1N

MIPI_DPHY1_TX_D1N/MIPI_CPHY1_TX_TRIO0_C

156

MIPI_DPHY1_TX_D1P

MIPI_DPHY1_TX_D1P/MIPI_CPHY1_TX_TRIO1_A

157

MIPI_DPHY1_TX_CLKN

MIPI_DPHY1_TX_CLKN/MIPI_CPHY1_TX_TRIO1_B

158

MIPI_DPHY1_TX_CLKP

MIPI_DPHY1_TX_CLKP/MIPI_CPHY1_TX_TRIO1_C

159

MIPI_DPHY1_TX_D2N

MIPI_DPHY1_TX_D2N/MIPI_CPHY1_TX_TRIO2_A

160

MIPI_DPHY1_TX_D2P

MIPI_DPHY1_TX_D2P/MIPI_CPHY1_TX_TRIO2_B

161

MIPI_DPHY1_TX_D3N

MIPI_DPHY1_TX_D3N/MIPI_CPHY1_TX_TRIO2_C

162

MIPI_DPHY1_TX_D3P

MIPI_DPHY1_TX_D3P/NO_USE

163

GND

电源地

164

MIPI_DPHY0_TX_D0N

MIPI 显示屏

MIPI_DPHY0_TX_D0N/MIPI_CPHY0_TX_TRIO0_A

165

MIPI_DPHY0_TX_D0P

MIPI_DPHY0_TX_D0P/MIPI_CPHY0_TX_TRIO0_B

166

MIPI_DPHY0_TX_D1N

MIPI_DPHY0_TX_D1N/MIPI_CPHY0_TX_TRIO0_C

167

MIPI_DPHY0_TX_D1P

MIPI_DPHY0_TX_D1P/MIPI_CPHY0_TX_TRIO1_A

168

MIPI_DPHY0_TX_CLKN

MIPI_DPHY0_TX_CLKN/MIPI_CPHY0_TX_TRIO1_B

170

MIPI_DPHY0_TX_D2N

MIPI_DPHY0_TX_D2N/MIPI_CPHY0_TX_TRIO2_A

171

MIPI_DPHY0_TX_D2P

MIPI_DPHY0_TX_D2P/MIPI_CPHY0_TX_TRIO2_B

172

MIPI_DPHY0_TX_D3N

MIPI_DPHY0_TX_D3N/MIPI_CPHY0_TX_TRIO2_C

173

MIPI_DPHY0_TX_D3P

MIPI_DPHY0_TX_D3P/NO_USE

174

GND

电源地

175

GMAC1_RXDV_CRS

GMAC

千兆以太网

GMAC1_RXDV_CRS/MIPI_CAMERA4_CLK_M1/UART2_TX_M2/PWM2_M1/GPIO3_B1_d

176

GMAC1_RXD0

GMAC1_RXD0/MIPI_CAMERA2_CLK_M1/PWM8_M0/GPIO3_A7_u

177

GMAC1_RXCLK

GMAC1_RXCLK/SDIO_CLK_M1/MIPI_CAMERA0_CLK_M1/FSPI_CLK_M2/I2C4_SDA_M0/UART8_CTSN_M1/G PIO3_A5_d

178

GMAC1_RXD3

GMAC1_RXD3/SDIO_D3_M1/I2S3_SDO/AUDDSM_RN/FSPI_D3_M2/UART8_RX_M1/SPI4_CS0_M1/GPIO3_A 3_u

179

GMAC1_RXD2

GMAC1_RXD2/SDIO_D2_M1/I2S3_LRCK/AUDDSM_LP/FSPI_D2_M2/UART8_TX_M1/SPI4_CLK_M1/GPIO3_A 2_u

180

GMAC1_RXD1

GMAC1_RXD1/MIPI_CAMERA3_CLK_M1/PWM9_M0/GPIO3_B0_u

181

GMAC1_TXCLK

GMAC1_TXCLK/SDIO_CMD_M1/I2S3_SDI/AUDDSM_RP/UART8_RTSN_M1/SPI4_CS1_M1/GPIO3_A4_d

182

GMAC1_TXD3

GMAC1_TXD3/SDIO_D1_M1/I2S3_SCLK/AUDDSM_LN/FSPI_D1_M2/I2C6_SCL_M4/PWM11_IR_M0/SPI4_M OSI_M1/GPIO3_A1_u

183

GMAC1_TXD2

GMAC1_TXD2/SDIO_D0_M1/I2S3_MCLK/FSPI_D0_M2/I2C6_SDA_M4/PWM10_M0/SPI4_MISO_M1/GPIO3_ A0_u

184

GMAC1_TXD1

GMAC1_TXD1/I2S2_MCLK_M1/UART2_CTSN/GPIO3_B4_u

185

GMAC1_TXD0

GMAC1_TXD0/I2S2_SDO_M1/UART2_RTSN/GPIO3_B3_u

186

GMAC1_TXEN

GMAC1_TXEN/I2S2_SCLK_M1/UART3_TX_M1/PWM12_M0/GPIO3_B5_u

187

ETH1_REFCLKO_25M

ETH1_REFCLKO_25M/MIPI_CAMERA1_CLK_M1/I2C4_SCL_M0/GPIO3_A6_d

188

GMAC1_MCLKINOUT

GMAC1_MCLKINOUT/I2S2_LRCK_M1/UART3_RX_M1/PWM13_M0/GPIO3_B6_d

189

GMAC1_MDC

GMAC1_MDC/MIPI_TE0/I2C8_SCL_M4/UART7_RTSN_M1/PWM14_M0/SPI1_CS0_M1/GPIO3_C2_d

190

GMAC1_MDIO

GMAC1_MDIO/MIPI_TE1/I2C8_SDA_M4/UART7_CTSN_M1/PWM15_IR_M0/SPI1_CS1_M1/GPIO3_C3_d

191

GMAC1_RSTn_L

GPIO(GMAC)

GMAC1_PTP_REF_CLK/HDMI_TX1_HPD_M1/I2C3_SCL_M1/SPI1_MOSI_M1/GPIO3_B7_d

193

GPIO4_B0_d

GPIO

CIF_CLKIN/BT1120_CLKOUT/I2S1_SDI3_M0/PCIE30X2_PERSTN_M1/I2C6_SDA_M3/UART8_TX_M0/SPI2_CS 1_M1/GPIO4_B0_d

194

GPIO2_B4_u

GPIO(BT 开关)

GMAC0_PTP_REFCLK/FSPI_CS0N_M1/HDMI_TX1_SDA_M0/I2C4_SDA_M1/UART7_RX_M0/GPIO2_B4_u

195

GPIO2_C1_d

GPIO(NFC)

GMAC0_RXD0/I2C2_SCL_M1/UART1_CTSN_M0/SPI1_MISO_M0/GPIO2_C1_d

196

PCIE20 0 RXP/SATA30 0 RXP

SATA 固态盘

PCIE20 0 RXP/SATA30 0 RXP

197

PCIE20 0 RXN/SATA30 0 RXN

PCIE20 0 RXN/SATA30 0 RXN

198

PCIE20 0 TXN/SATA30 0 TXN

PCIE20 0 TXN/SATA30 0 TXN

199

PCIE20 0 TXP/SATA30 0 TXP

PCIE20 0 TXP/SATA30 0 TXP

200

PCIE20_0_REFCLKP

PCIE20_0_REFCLKP

201

PCIE20_0_REFCLKN

PCIE20_0_REFCLKN

202

PCIE20 2 RXN/USB30 2 SSRXN

USB3.0

PCIE20 2 RXN/SATA30 2 RXN/USB30_SSRXN

203

PCIE20 2 RXP/USB30 2 SSRXP

PCIE20 2 RXP/SATA30 2 RXP/USB30_SSRXP

204

PCIE20 2 TXN/USB30 2 SSTXN

PCIE20 2 TXN/SATA30 2 TXN/USB30_SSTXN

205

PCIE20 2 TXP/USB30 2 SSTXP

PCIE20 2 TXP/SATA30 2 TXP/USB30_SSTXP

206

PCIE20_2_REFCLKN

PCIE20_2_REFCLKN

207

PCIE20_2_REFCLKP

PCIE20_2_REFCLKP

208

GPIO1_D5_d

GPIO(耳机插入)

PDM0_SDI0_M0/SPI1_CS1_M2/GPIO1_D5_d

209

GPIO3_D5_d

GPIO(PCIE 电源)

PCIE30X4_BUTTON_RSTN/DP1_HPDIN_M0/MCU_JTAG_TMS_M1/UART9_TX_M2/PWM11_IR_M3/SPI0_CS1 _M3/GPIO3_D5_d

210

PCIE30X4_CLKREQn_M3_L

M2 电子盘

PDM1_SDI1_M1/PCIE30X4_CLKREQN_M3/SPI2_CS1_M0/GPIO1_B0_u

211

PCIE30X4_PERSTn_M3_L

PDM1_SDI3_M1/PCIE30X4_PERSTN_M3/UART4_RX_M2/SPI0_MOSI_M2/GPIO1_B2_d

212

PCIE30X4_WAKEn_M3_L

PDM1_SDI2_M1/PCIE30X4_WAKEN_M3/SPI0_MISO_M2/GPIO1_B1_d

213

PCIE30_PORT0_RX0P

PCIE30_PORT0_RX0P

214

PCIE30_PORT0_RX0N

PCIE30_PORT0_RX0N

215

PCIE30_PORT0_RX1P

PCIE30_PORT0_RX1P

216

PCIE30_PORT0_RX1N

PCIE30_PORT0_RX1N

217

PCIE30_PORT0_REFCLKP_IN

PCIE30_PORT0_REF_CLKP

T1

SARADC7

ADC

SARADC_IN7

T2

GPIO0_B0_z

GPIO(散热风扇)

SPI2_CS1_M2/I2C1_SCL_M1/UART0_RX_M1/GPIO0_B0_z

T5

USB20_HOST0_DP

USB2.0

USB20_HOST0_DP

T6

PCIEX1_1_WAKEn_M1_L

PCIE

千兆以太网

CIF_D1/BT1120_D1/I2S1_SCLK_M0/PCIE30X1 1 WAKEN_M1/UART9_CTSN_M1/SPI0_MOSI_M1/GPIO4_A1

T7

PCIEX1_1_PERSTn_M1_L

CIF_D2/BT1120_D2/I2S1_LRCK_M0/PCIE30X1 1 PERSTN_M1/SPI0_CLK_M1/GPIO4_A2_d

T8

PCIE20 1 RXN/SATA30 1 RXN

PCIE20 1 RXN/SATA30 1 RXN

T9

PCIE20 1 RXP/SATA30 1 RXP

PCIE20 1 RXP/SATA30 1 RXP

T10

PCIE20_1_REFCLKN

PCIE20_1_REFCLKN

T11

PCIE20_1_REFCLKP

PCIE20_1_REFCLKP

T12

PCIE20 1 TXN/SATA30 1 TXN

PCIE20 1 TXN/SATA30 1 TXN

T13

PCIE20 1 TXP/SATA30 1 TXP

PCIE20 1 TXP/SATA30 1 TXP

T14

PCIEX1 1 CLKREQn_M1_L

CIF_D0/BT1120_D0/I2S1_MCLK_M0/PCIE30X1 1 CLKREQN_M1/UART9_RTSN_M1/SPI0_MISO_M1/GPIO4_ A0_d

T15

MIPI_CAM1_CLKOUT

GPIO(摄像头)

MIPI_CAMERA1_CLK_M0/SPDIF0_TX_M0/PCIE30X2_WAKEN_M3/HDMI_RX_HPDIN_M2/I2C5_SCL_M3/UAR T1_TX_M1/GPIO1_B6_d

T16

MIPI_CAM2_CLKOUT

GPIO(摄像头)

MIPI_CAMERA2_CLK_M0/SPDIF1_TX_M0/PCIE30X2_PERSTN_M3/HDMI_RX_CEC_M2/SATA2_ACT_LED_M1/ I2C5_SDA_M3/UART1_RX_M1/PWM13_M2/GPIO1_B7_u

T17

I2C3_SDA_M0_MIPI

I2C3(摄像头)

I2C3_SDA_M0/UART3_RX_M0/SPI4_MISO_M0/GPIO1_C0_z

T18

I2C3_SCL_M0_MIPI

I2C3_SCL_M0/UART3_TX_M0/SPI4_MOSI_M0/GPIO1_C1_z

T19

GPIO4_C6_d

GPIO(摄像头)

GMAC0_TXER/I2C0_SDA_M1/UART7_CTSN_M0/PWM7_IR_M3/SPI3_CLK_M0/GPIO4_C6_d

T20

GPIO1_C6_d

GPIO(摄像头)

PDM0_CLK0_M0/I2C4_SDA_M4/PWM15_IR_M2/GPIO1_C6_d

T21

MIPI_CAM4_CLKOUT

时钟输出(摄像头)

MIPI_CAMERA4_CLK_M0/PCIE30X2_CLKREQN_M3/HDMI_RX_SDA_M2/I2C8_SDA_M2/UART1_CTSN_M1/P WM15_IR_M3/GPIO1_D7_u

T22

SARADC_VIN1_KEY/RECOVERY

烧写健

SARADC_IN1

T23

SARADC2

ADC

SARADC_IN2

T24

SARADC3

ADC

SARADC_IN3

T25

SARADC4

ADC

SARADC_IN4

T27

MIPI_CSI0_RX_D0N

MIPI 摄像头

MIPI_CSI0_D0N

T28

SARADC6

ADC

SARADC_IN6

T29

MIPI_CSI0_RX_D0P

MIPI 摄像头

MIPI_CSI0_D0P

T30

MIPI_CSI0_RX_D1N

MIPI_CSI0_D1N

T31

MIPI_CSI0_RX_D1P

MIPI_CSI0_D1P

T32

MIPI_CSI0_RX_CLK0N

MIPI_CSI0_CLK0N

T33

MIPI_CSI0_RX_CLK0P

MIPI_CSI0_CLK0P

T34

MIPI_CSI0_RX_D2N

MIPI_CSI0_D2N

T35

HDMI1_TX_SBDP/eDP1_TX_AUXP

HDMI 输出

HDMI_TX1_SBDP/eDP_TX1_AUXP

T36

HDMI1_TX_SBDN/eDP1_TX_AUXN

HDMI_TX1_SBDP/eDP_TX1_AUXN

T37

HDMI1_TX0P_PORT/eDP1_TX_D0P

HDMI_TX1_D0P/eDP_TX1_D0P

T38

MIPI_CSI0_RX_D2P

MIPI 摄像头

MIPI_CSI0_D2P

T39

MIPI_CSI0_RX_D3N

MIPI_CSI0_D3N

T40

HDMI1_TX0N_PORT/eDP1_TX_D0N

HDMI 输出

HDMI1_TX0N_PORT/eDP1_TX_D0N

T41

HDMI1_TX1P_PORT/eDP1_TX_D1P

HDMI_TX1_D1P/eDP_TX1_D1P

T42

HDMI1_TX1N_PORT/eDP1_TX_D1N

HDMI_TX1_D1N/eDP_TX1_D1N

T43

MIPI_CSI0_RX_D3P

MIPI 摄像头

MIPI_CSI0_D3P

T44

MIPI_CAM3_CLKOUT

时钟输出(摄像头)

MIPI_CAMERA3_CLK_M0/HDMI_RX_SCL_M2/I2C8_SCL_M2/UART1_RTSN_M1/PWM14_M2/GPIO1_D6_u

T45

HDMI1_TX2P_PORT/eDP1_TX_D2P

HDMI 输出

HDMI1_TX2P_PORT/eDP1_TX_D2P

T46

HDMI1_TX2N_PORT/eDP1_TX_D2N

HDMI_TX1_D2N/eDP_TX1_D2N

T47

HDMI1_TX3P_PORT/eDP1_TX_D3P

HDMI_TX1_D3P/eDP_TX1_D3P

T48

MIPI_CSI0_RX_CLK1N

MIPI 摄像头

MIPI_CSI0_CLK1N

T49

MIPI_CSI0_RX_CLK1P

MIPI_CSI0_CLK1P

T50

HDMI1_TX3N_PORT/eDP1_TX_D3N

HDMI 输出

HDMI_TX1_D3P/eDP_TX1_D3N

T51

HDMITX1_SDA_M1

CIF_D9/FSPI_CS1N_M2/PCIE30X4_WAKEN_M2/HDMI_TX1_SDA_M1/UART5_RX_M1/SPI3_CS1_M3/GPIO3_ C5_u

T52

HDMITX1_SCL_M1

CIF_D10/PCIE30X4_PERSTN_M2/HDMI_TX1_SCL_M1/SPI3_MISO_M3/GPIO3_C6_u

T54

GPIO1_A6_d

HDMI_TX1_HPD_M0/SPI2_CLK_M0/GPIO1_A6_d

T55

HDMI1_TX_ON_H

HDMI 输出

GMAC1_TXER/I2S2_SDI_M1/UART2_RX_M2/PWM3_IR_M1/GPIO3_B2_d

T56

USB20_HOST1_DM

USB2.0

USB20_HOST1_DM

T57

USB20_HOST1_DP

USB20_HOST1_DP

T58

USB20_HOST0_DM

USB2.0

USB20_HOST0_DM
