瑞芯微RK3562核心板

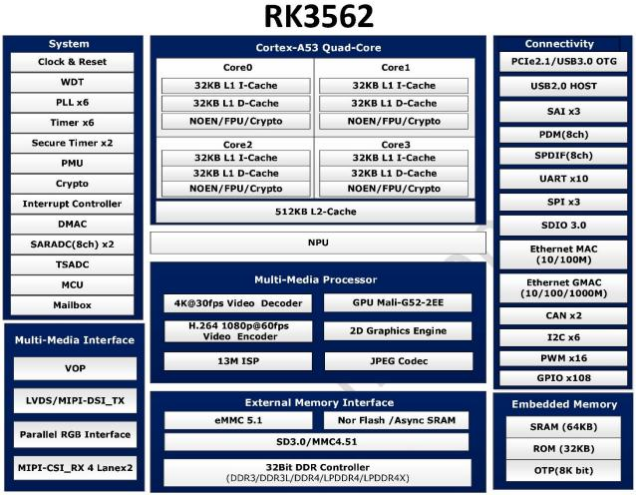

处理器

RK3562 Cortex A53 四核 64 位 ARM64 ，最高主频 2.0G

内置 NPU

RKNN NPU ，1TOPS 算力，用于 AI 计算

内置 GPU

MALI-G52-2EE，支持 OpenCL 2.0 ，OpenGLES 1.1 、2.0 、3.2 ，Vulkan1.1

内置视频编解码

支持 4K@60fps H265 格式硬解码、1080P@60fps 硬编码

内存 LPDDR4

2GB / 4GB / 8GB ，标配 2GB

存储 EMMC

16GB / 32GB / 64GB / 128GB ，标配 16GB

操作系统

支持安卓 Android 13 、Buildroot Linux 、Debian11 、Ubuntu 22.04

PET-RK3562 核心板引脚功能

LVDS 显示输出

双 8 双通道 1920x1080（通过底板 MIPI 转 LVDS 芯片实现）、单 8 单通道 1280x800

eDP 显示输出

最大支持分辨率 1920x1080（通过底板 MIPI 转 eDP 芯片实现）

MIPI 显示输出

最大支持分辨率 2048x1080

RGB 显示输出

最大支持分辨率 1920x1080

视频输入接口

MIPI CSI 2 路(8 Lane)

按键接口

电源键、烧写键、复位键、ADC 按键、GPIO 按键、GPIO 矩阵键盘

千兆以太网接口

1 路

百兆以太网接口

1 路

SDIO 接口

2 路，可用于 TF 卡、WIFI 蓝牙模组等

SPI 接口

3 路

SARADC 接口

16 路，10bit / 1MSPS / 12MHz 频率；用于 ADC 按键、ADC 输入检测

I2C 接口

6 路，用于电容触摸屏/RTC/NFC/I2C 外设等

UART 串口

10 路

I2S 接口

3 路

PWM 接口

16 路，用于 IR 红外输入、PWM 输出、显示屏背光控制等

CAN 接口

2 路

PCIE2.1 接口

1 路，2 Lane；可用于 M2 固态盘等

看门狗

1 个，CPU 内置

SPDIF 输出

1 路，8 通道

PDM 输入

1 路，8 通道

耳机输出接口

1 路，双通道（通过底板功放芯片实现 15W 喇叭驱动能力）

喇叭输出接口

1 路，8 欧 1.3W

麦克风输入接口

2 路

GPIO/中断

多路

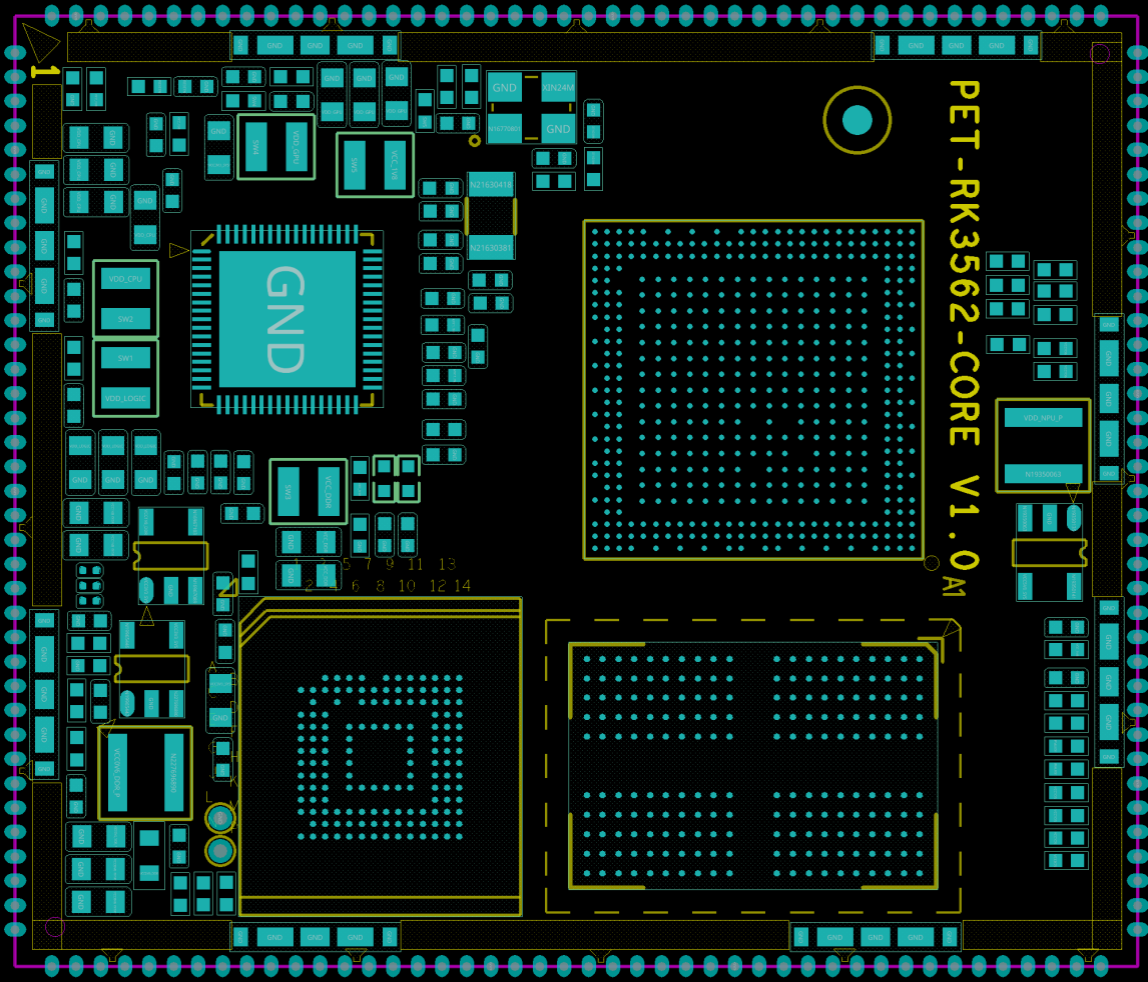

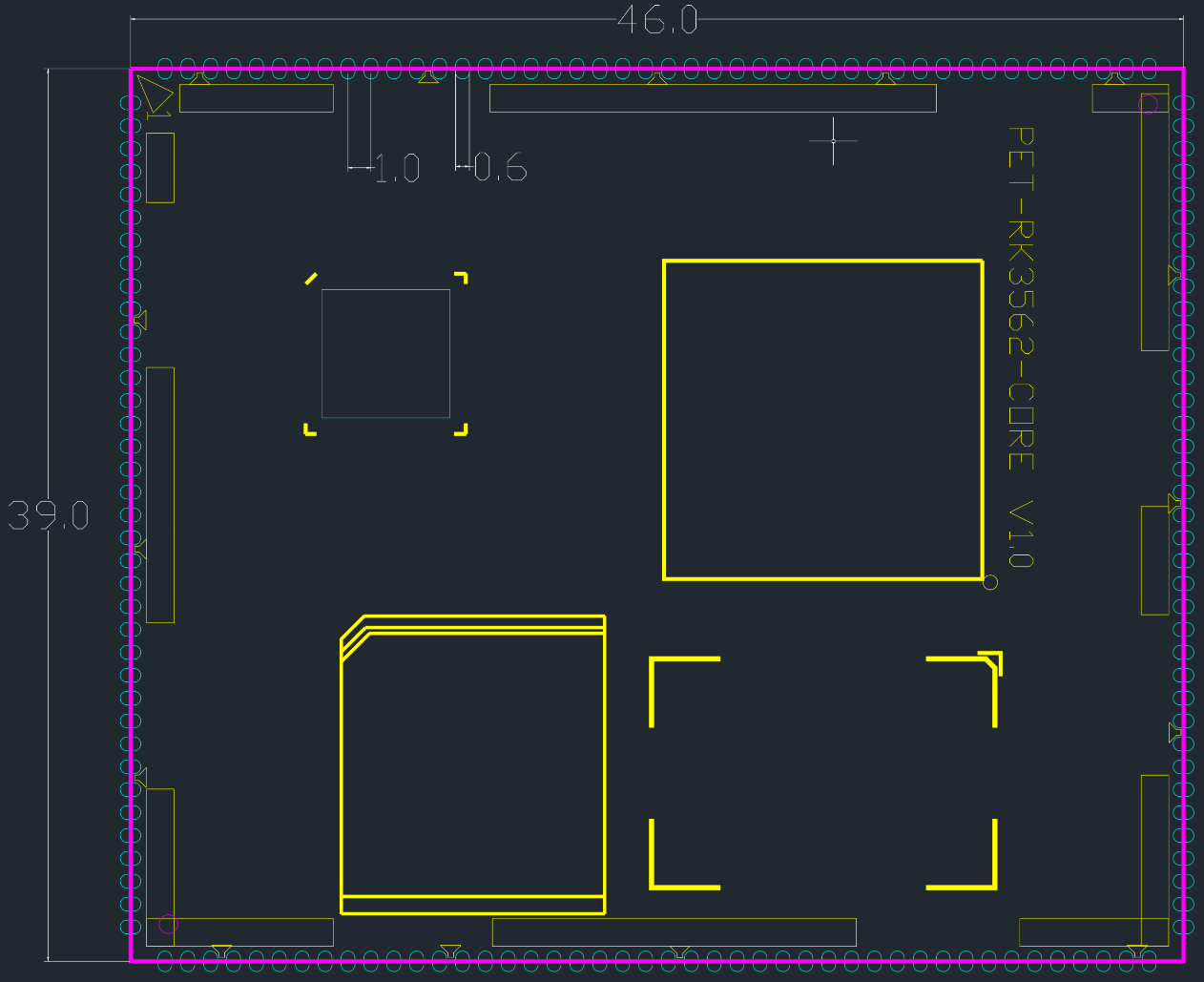

PET-RK3562 核心板结构参数

尺寸

63 x 50 mm，厚度 1.2mm

邮票孔间距

1.0mm

引脚数

176 pin

PCB 工艺

八层板，沉金工艺

1

VCC5V0_SYS

5V 电源输入

2

VCC_3V3

3.3V 电源输入

3

VCC_1V8

1.8V 电源输出

4

VCC3V3_SD

3.3V 电源(TF 卡)

5

GND

电源地

6

PMIC_EXT_EN

EXT_EN 输出

7

PMIC_PWRON

电源键信号输入

8

RESETn

复位按键

9

RK809_VDC

上电开机信号输入

10

SPK_CTL

GPIO(功放开关)

VO_LCDC_D10/I2S1_SDI1_M0/UART4_RX_M0/UART3_RTSN _M0/GPIO3_D1_d

11

HP_DET_H

GPIO(耳机检测)

VO_LCDC_D7/I2S1_SDI0_M0/UART4_TX_M0/GPIO3_D0_d

12

MIC1_IN

麦克风输入

MIC1_IN

13

MIC2_IN

麦克风输入

MIC2_IN

14

HPR_OUT

耳机输出

HPR_OUT

15

HPL_OUT

HPL_OUT

16

HP_SNS

HP_SNS

17

SPKN_OUT

喇叭输出

SPKN_OUT

18

SPKP_OUT

SPKP_OUT

19

GND

电源地

20

WIFI_REG_ON_H

GPIO(WIFI 开关)

I2C1_SCL_M0/GPIO0_B3_d

21

GPIO0_C7_d

CAN 总线

UART6_RX_M0/CAN0_RX_M2/GPIO0_C7_d

22

BT_WAKE_HOST_H

UART6_TX_M0/CAN0_TX_M2/GPIO0_C6_d

23

WIFI_WAKE_HOST_H

GPIO(GMAC)

I2C1_SDA_M0/GPIO0_B4_d

24

SPI0_CLK_M0

GPIO

UART2_RTSN_M0/PWM0_M0/SPI0_CLK_M0/GPIO0_C3_d

25

SPI0_CSN0_M0

GPIO

UART2_CTSN_M0/PWM5_M0/SPI0_CSN0_M0/GPIO0_C2_d

27

SPI0_MOSI_M0

GPIO

UART6_CTSN_M0/PWM1_M0/SPI0_MOSI_M0/GPIO0_C4_d

28

RTCIC_INT_L

GPIO(RTC 中断)

SDMMC0_PWREN/I2C4_SCL_M1/PMU_DEBUG/GPIO0_A5_d

29

UART1_TX_M0

UART1(BT)

UART1_TX_M0/RGMII_TXD1_M1/I2S0_SDO2_M1/PWM5_M1/RMII_TXD1/GPIO1_D2_d

30

UART1_RX_M0

UART1_RX_M0/RGMII_TXD0_M1/I2S0_SDO1_M1/PWM4_M1/RMII_TXD0/GPIO1_D1_d

31

UART1_CTSn_M0

UART1_CTSN_M0/RGMII_RXD0_M1/I2S0_SDI3_M1/PWM7_ M1/RMII_RXD0/GPIO1_D4_d

32

UART1_RTSn_M0

UART1_RTSN_M0/RGMII_TXEN_M1/I2S0_SDI2_M1/PWM6_M 1/RMII_TXEN/GPIO1_D3_d

33

I2S2_SDI_M0

GPIO(NFC)

I2S2_SDI_M0/RGMII_RXER_M1/UART4_CTSN_M1/SPI2_MISO_M1/PWM15_M1/RMII_RXER/GPIO2_A0_d

34

I2S2_SDO_M0

GPIO(4G 复位)

I2S2_SDO_M0/RGMII_RXD1_M1/UART4_RTSN_M1/SPI2_MOSI_M1/PWM14_M1/RMII_RXD1/GPIO1_D7_d

35

I2S2_SCLK_M0

UART4

I2S2_SCLK_M0/RGMII_CLK_M1/UART4_RX_M1/SPI2_CSN1_ M1/RMII_CLK/GPIO1_D5_d

36

I2S2_LRCK_M0

I2S2_LRCK_M0/RGMII_RXDV_M1/UART4_TX_M1/SPI2_CSN 0_M1/RMII_RXDV_CRS/GPIO1_D6_d

37

BT_REG_ON_H

GPIO(BT 开关)

SDMMC1_DETN/RGMII_MDIO_M1/PWM3_M1/I2C5_SDA_M1/RMII_MDIO/GPIO1_D0_d

38

SDIO_D1

SDIO(WIFI)

SDMMC1_D1/RGMII_TXD3_M1/I2S0_SDI1_M1/PWM9_M1/GPIO1_C2_d

39

SDIO_D0

SDMMC1_D0/RGMII_TXD2_M1/I2S0_SDI0_M1/PWM8_M1/GPIO1_C1_d

40

SDIO_CLK

SDMMC1_CLK/RGMII_RXCLK_M1/I2S0_MCLK_M1/PWM1_M1/GPIO1_C6_d

41

SDIO_CMD

SDMMC1_CMD/RGMII_RXD3_M1/I2S0_SCLK_M1/PWM0_M1/GPIO1_C5_d

42

SDIO_D3

SDMMC1_D3/RGMII_RXD2_M1/I2S0_LRCK_M1/PWM11_M1/GPIO1_C4_d

43

SDIO_D2

SDMMC1_D2/RGMII_TXCLK_M1/I2S0_SDO0_M1/PWM10_M1/GPIO1_C3_d

44

SDMMC0_CLK

SDMMC0(TF 卡)

SDMMC0_CLK/TEST_CLK_OUT/UART5_TX_M0/SPI1_CLK_M1/CAN1_TX_M0/GPIO1_C0_d

45

SDMMC0_CMD

SDMMC0_CMD/SPDIF_TX_M2/UART5_RX_M0/CAN1_RX_M0/GPIO1_B7_u

46

SDMMC0_D0

SDMMC0_D0/UART0_RX_M1/UART7_RX_M1/SPI1_MOSI_M1/DSM_AUD_LP/GPIO1_B3_u

47

SDMMC0_D1

SDMMC0_D1/UART0_TX_M1/UART7_TX_M1/SPI1_MISO_M1/DSM_AUD_LN/GPIO1_B4_u

48

SDMMC0_D2

SDMMC0_D2/UART5_CTSN_M0/SPI1_CSN1_M1/PWM10_M0/DSM_AUD_RP/GPIO1_B5_u

49

SDMMC0_D3

SDMMC0_D3/UART5_RTSN_M0/SPI1_CSN0_M1/PWM11_M0/DSM_AUD_RN/GPIO1_B6_u

50

SDMMC0_DET_L

SDMMC0_DETN/I2C4_SDA_M1/GPIO0_A4_u

51

PWM_NPU

PWM6

UART2_RX_M0/PWM6_M0/CAN1_RX_M1/NPU_AVS/GPIO0_C1_d

52

PMIC_32KOUT_WIFI

32.768K 时钟

CLK32K

53

SARADC0_IN1_KEY/RECOVERY

烧写键

SARADC0_IN1

55

GPIO1_C7_d

GPIO

SDMMC1_PWREN/RGMII_MDC_M1/PWM2_M1/I2C5_SCL_M1/RMII_MDC/GPIO1_C7_d

56

GND

电源地

57

PWM7_IR

IR 红外输入

UART2_TX_M0/PWM7_M0/GPU_AVS/CAN1_TX_M1/GPIO0_C0_d

58

UART0_TX_M0_DEBUG

UART0 调试串口

UART0_TX_M0/JTAG_CPU_MCU_TCK_M0/GPIO0_D1_u

59

UART0_RX_M0_DEBUG

UART0_RX_M0/JTAG_CPU_MCU_TMS_M0/GPIO0_D0_u

60

UART3_TX_M0

UART3

VO_LCDC_HSYNC/I2S1_SDO1_M0/UART9_CTSN_M0/SPI2_CSN1_M0/I2C1_SCL_M1/UART3_TX_M0/GPIO4_ B4_d

61

UART3_RX_M0

VO_LCDC_VSYNC/I2S1_SDO2_M0/UART9_RTSN_M0/SPI2_CSN0_M0/I2C1_SDA_M1/UART3_RX_M0/GPIO4 _B5_d

62

UART5_TX_M1

UART5

I2S0_SDO1_M0/I2S0_SDI3_M0/PDM_CLK0_M0/PCIE20_CLKREQN_M1/UART5_TX_M1/GPIO3_A6_d

63

UART5_RX_M1

I2S0_SDO2_M0/I2S0_SDI2_M0/PDM_SDI2_M0/PCIE20_WAKEN_M1/UART5_RX_M1/GPIO3_A7_d

64

UART7_TX_M0

UART7

VO_LCDC_D3/I2S1_MCLK_M0/UART7_TX_M0/GPIO3_C4_d

65

UART7_RX_M0

VO_LCDC_D6/I2S1_SDO0_M0/UART7_RX_M0/GPIO3_C7_d

66

GND

电源地

67

GPIO4_B6_d

GPIO(唤醒 BT)

VO_LCDC_DEN/I2S1_SDO3_M0/UART3_CTSN_M0/SPI2_CLK_M0/GPIO4_B6_d

68

I2C2_SCL_M1

GPIO(NFC)

VO_LCDC_D11/I2S1_SDI2_M0/UART7_CTSN_M0/SPI2_MISO_M0/I2C2_SCL_M1/GPIO3_D2_d

69

I2C2_SDA_M1

GPIO(NFC)

VO_LCDC_D12/I2S1_SDI3_M0/UART7_RTSN_M0/SPI2_MOSI_M0/I2C2_SDA_M1/GPIO3_D3_d

70

GPIO3_B0_d

GPIO(指示灯)

I2S0_SDO3_M0/I2S0_SDI1_M0/PDM_SDI1_M0/PCIE20_PERSTN_M1/GPIO3_B0_d

71

CAM_RST1_L

GPIO(Camera)

VO_LCDC_D5/I2S1_LRCK_M0/UART4_RTSN_M0/PWM15_M0/GPIO3_C6_d

72

CAM_RST0_L

GPIO(Camera)

VO_LCDC_D4/I2S1_SCLK_M0/UART4_CTSN_M0/PWM14_M0/GPIO3_C5_d

73

CAM_PDN1_L

GPIO(Camera)

I2S1_SDI0_M1/ISP_FLASH_TRIGIN/UART3_RTSN_M1/GPIO3_C1_d

74

CAM_PDN0_L

GPIO(Camera)

I2S1_SDO3_M1/I2S1_SDI1_M1/UART3_RX_M1/SPI0_MISO_M1/GPIO3_C0_d

75

LCD_PWREN_H

GPIO(LCD 电源)

I2S2_MCLK_M0/ETH_CLK_25M_OUT_M1/CLK1_32K_OUT/SPI2_CLK_M1/I2S0_SDO3_M1/GPIO2_A1_d

76

UART2_RX_M1

UART2

I2C3_SDA_M0/UART2_RX_M1/SPDIF_TX_M0/CAN0_RX_M0/UART5_RTSN_M1/GPIO3_A1_d

77

UART2_TX_M1

I2C3_SCL_M0/UART2_TX_M1/PDM_SDI3_M0/UART5_CTSN_M1/CAN0_TX_M0/GPIO3_A0_d

78

ETH_CLK_25M_OUT_M0

25M 时钟

VO_LCDC_D17/ETH_CLK_25M_OUT_M0/CAM_CLK0_OUT_M1/I2S2_SCLK_M1/PDM_CLK1_M1/GPIO4_B1_d

79

CAM_CLK3_OUT

Camera 时钟

I2S1_SDO0_M1/CAM_CLK3_OUT/UART8_RTSN_M0/SPI0_CLK_M1/PWM13_M1/GPIO3_B5_d

81

CAM_CLK1_OUT

UART8

I2S1_SCLK_M1/CAM_CLK1_OUT_M0/UART8_RX_M0/GPIO3_B3_d

82

CAM_CLK0_OUT

I2S1_MCLK_M1/CAM_CLK0_OUT_M0/UART8_TX_M0/GPIO3_B2_d

83

I2C5_SDA_M0

I2C5(NFC)

I2C5_SDA_M0/ISP_FLASH_TRIGOUT/UART9_RX_M1/GPIO3_C3_d

84

I2C5_SCL_M0

I2C5_SCL_M0/ISP_PRELIGHT_TRIGOUT/UART9_TX_M1/GPIO3_C2_d

85

I2C4_SDA_M0

I2C4(Camera)

I2S1_SDO2_M1/I2S1_SDI2_M1/UART3_TX_M1/SPI0_CSN0_M1/I2C4_SDA_M0/CAN0_RX_M1/GPIO3_B7_d

86

I2C4_SCL_M0

I2S1_SDO1_M1/I2S1_SDI3_M1/UART3_CTSN_M1/SPI0_CSN1_M1/I2C4_SCL_M0/CAN0_TX_M1/GPIO3_B6

87

USB_OTG0ID_GPIO

GPIO

VO_LCDC_D16/RGMII_RXER_M0/UART1_CTSN_M1/PDM_SDI1_M1/UART6_RX_M1/GPIO4_B0_d

88

GND

电源地

89

RGMII_CLK_M0

千兆以太网 GMAC

VO_LCDC_CLK/RGMII_CLK_M0/CAM_CLK1_OUT_M1/PDM_CLK0_M1/GPIO4_B7_d

90

RGMII_RXCLK_M0

VO_LCDC_D21/RGMII_RXCLK_M0/I2S2_LRCK_M1/PWM12_M0/GPIO4_A1_d

91

RGMII_RXDV_M0

VO_LCDC_D9/RGMII_RXDV_M0/UART1_RTSN_M1/PDM_SDI0_M1/UART6_TX_M1/GPIO4_A7_d

92

RGMII_RXD0_M0

VO_LCDC_D1/RGMII_RXD0_M0/UART1_TX_M1/PDM_SDI2_M1/I2C3_SCL_M1/GPIO4_A5_d

93

RGMII_RXD1_M0

VO_LCDC_D8/RGMII_RXD1_M0/UART1_RX_M1/PDM_SDI3_M1/I2C3_SDA_M1/GPIO4_A6_d

94

RGMII_RXD2_M0

VO_LCDC_D19/RGMII_RXD2_M0/UART8_CTSN_M1/SPI1_CSN0_M0/GPIO3_D7_d

95

RGMII_RXD3_M0

VO_LCDC_D20/RGMII_RXD3_M0/UART8_RTSN_M1/SPI1_CSN1_M0/GPIO4_A0_d

96

RGMII_TXCLK_M0

VO_LCDC_D15/RGMII_TXCLK_M0/I2S2_MCLK_M1/SPI1_CLK_M0/GPIO3_D6_d

97

RGMII_TXEN_M0

VO_LCDC_D0/RGMII_TXEN_M0/PWM13_M0/GPIO4_A4_d

98

RGMII_TXD0_M0

VO_LCDC_D22/RGMII_TXD0_M0/UART6_CTSN_M1/SPI1_MOSI_M0/GPIO4_A2_d

99

RGMII_TXD1_M0

VO_LCDC_D23/RGMII_TXD1_M0/UART6_RTSN_M1/SPI1_MISO_M0/GPIO4_A3_d

100

RGMII_TXD2_M0

VO_LCDC_D13/RGMII_TXD2_M0/UART8_TX_M1/I2S2_SDI_M1/GPIO3_D4_d

101

RGMII_TXD3_M0

VO_LCDC_D14/RGMII_TXD3_M0/UART8_RX_M1/I2S2_SDO_M1/GPIO3_D5_d

102

RGMII_MDIO_M0

VO_LCDC_D18/RGMII_MDIO_M0/UART9_RX_M0/GPIO4_B3_d

103

RGMII_MDC_M0

VO_LCDC_D2/RGMII_MDC_M0/UART9_TX_M0/GPIO4_B2_d

104

GND

电源地

105

MIPI_CSI_RX1_CLK1N

摄像头

MIPI CSI

MIPI_CSI_RX1_CLK1N

106

MIPI_CSI_RX1_CLK1P

MIPI_CSI_RX1_CLK1P

107

MIPI_CSI_RX1_D3P

MIPI_CSI_RX1_D3P

109

MIPI_CSI_RX1_D2P

MIPI_CSI_RX1_D2P

110

MIPI_CSI_RX1_D2N

MIPI_CSI_RX1_D2N

111

MIPI_CSI_RX1_CLK0P

MIPI_CSI_RX1_CLK0P

112

MIPI_CSI_RX1_CLK0N

MIPI_CSI_RX1_CLK0N

113

MIPI_CSI_RX1_D1P

MIPI_CSI_RX1_D1P

114

MIPI_CSI_RX1_D1N

MIPI_CSI_RX1_D1N

115

MIPI_CSI_RX1_D0P

MIPI_CSI_RX1_D0P

116

MIPI_CSI_RX1_D0N

MIPI_CSI_RX1_D0N

117

MIPI_CSI_RX0_CLK1N

MIPI_CSI_RX0_CLK1N

118

MIPI_CSI_RX0_CLK1P

MIPI_CSI_RX0_CLK1P

119

MIPI_CSI_RX0_D3P

MIPI_CSI_RX0_D3P

120

MIPI_CSI_RX0_D3N

MIPI_CSI_RX0_D3N

121

MIPI_CSI_RX0_D2P

MIPI_CSI_RX0_D2P

122

MIPI_CSI_RX0_D2N

MIPI_CSI_RX0_D2N

123

MIPI_CSI_RX0_CLK0P

MIPI_CSI_RX0_CLK0P

124

MIPI_CSI_RX0_CLK0N

MIPI_CSI_RX0_CLK0N

125

MIPI_CSI_RX0_D1P

MIPI_CSI_RX0_D1P

126

MIPI_CSI_RX0_D1N

MIPI_CSI_RX0_D1N

127

MIPI_CSI_RX0_D0P

MIPI_CSI_RX0_D0P

128

MIPI_CSI_RX0_D0N

MIPI_CSI_RX0_D0N

129

MIPI_DSI_TX_D3P/LVDS_TX_D3P

显示屏

MIPI/LVDS

MIPI_DSI_TX_D3P/LVDS_TX_D3P

130

MIPI_DSI_TX_D3N/LVDS_TX_D3N

MIPI_DSI_TX_D3N/LVDS_TX_D3N

131

MIPI_DSI_TX_D2N/LVDS_TX_D2N

MIPI_DSI_TX_D2N/LVDS_TX_D2N

132

MIPI_DSI_TX_D2P/LVDS_TX_D2P

MIPI_DSI_TX_D2P/LVDS_TX_D2P

133

MIPI_DSI_TX_CLKP/LVDS_TX_CLKP

MIPI_DSI_TX_CLKP/LVDS_TX_CLKP

134

MIPI_DSI_TX_CLKN/LVDS_TX_CLKN

MIPI_DSI_TX_CLKN/LVDS_TX_CLKN

135

MIPI_DSI_TX_D1N/LVDS_TX_D1N

MIPI_DSI_TX_D1N/LVDS_TX_D1N

137

MIPI_DSI_TX_D0P/LVDS_TX_D0P

MIPI_DSI_TX_D0P/LVDS_TX_D0P

138

MIPI_DSI_TX_D0N/LVDS_TX_D0N

MIPI_DSI_TX_D0N/LVDS_TX_D0N

139

GND

电源地

140

LCD_BL_PWM

PWM4(背光)

SPI0_CSN1_M0/PWM4_M0/CPU_AVS/SPDIF_TX_M1/GPIO0_B7_d

141

I2C2_SDA_TP

I2C2(TP)

I2C2_SDA_M0/PCIE20_WAKEN_M0/GPIO0_B6_d

142

I2C2_SCL_TP

I2C2_SCL_M0/PCIE20_PERSTN_M0/GPIO0_B5_d

143

LCD_RST_L

GPIO(LCD 复位)

PWM3_M0/GPIO0_A7_d

144

LCD-BL-EN

GPIO(背光)

CLK_32K_IN/CLK0_32K_OUT/PCIE20_BUTTONRSTN/GPIO0_B0_d

145

I2C0_SDA_PMIC

I2C0(RTC)

I2C0_SDA/GPIO0_B2_d

146

I2C0_SCL_PMIC

I2C0_SCL/GPIO0_B1_d

147

TP_RST_L

GPIO(TP 复位)

PCIE20_CLKREQN_M0/GPIO0_A6_d

148

TP_INT_L

GPIO(TP 中断)

REF_CLK_OUT/GPIO0_A0_d

149

USB30_OTG0_VBUSDET

USB3.0 USB2.0 OTG

USB30_OTG0_VBUSDET

150

USB30_OTG0_ID

USB30_OTG0_ID

151

USB30_OTG0_DM

USB30_OTG0_DM

152

USB30_OTG0_DP

USB30_OTG0_DP

153

USB20_HOST1_DM

USB2.0

USB20_HOST1_DM

154

USB20_HOST1_DP

USB20_HOST1_DP

155

USB30_OTG0_SSTXP/PCIE20_TXDP

USB3.0

USB30_OTG0_SSTXP/PCIE20_TXDP

156

USB30_OTG0_SSTXN/PCIE20_TXDN

USB30_OTG0_SSTXN/PCIE20_TXDN

157

PCIE20_REFCLKP

PCIE

PCIE20_REFCLKP

158

PCIE20_REFCLKN

PCIE20_REFCLKN

159

USB30_OTG0_SSRXP/PCIE20_RXDP

USB3.0

USB30_OTG0_SSRXP/PCIE20_RXDP

160

USB30_OTG0_SSRXN/PCIE20_RXDN

USB30_OTG0_SSRXN/PCIE20_RXDN

161

GND

电源地

162

VCC3V3_SYS

3.3V 电源输入

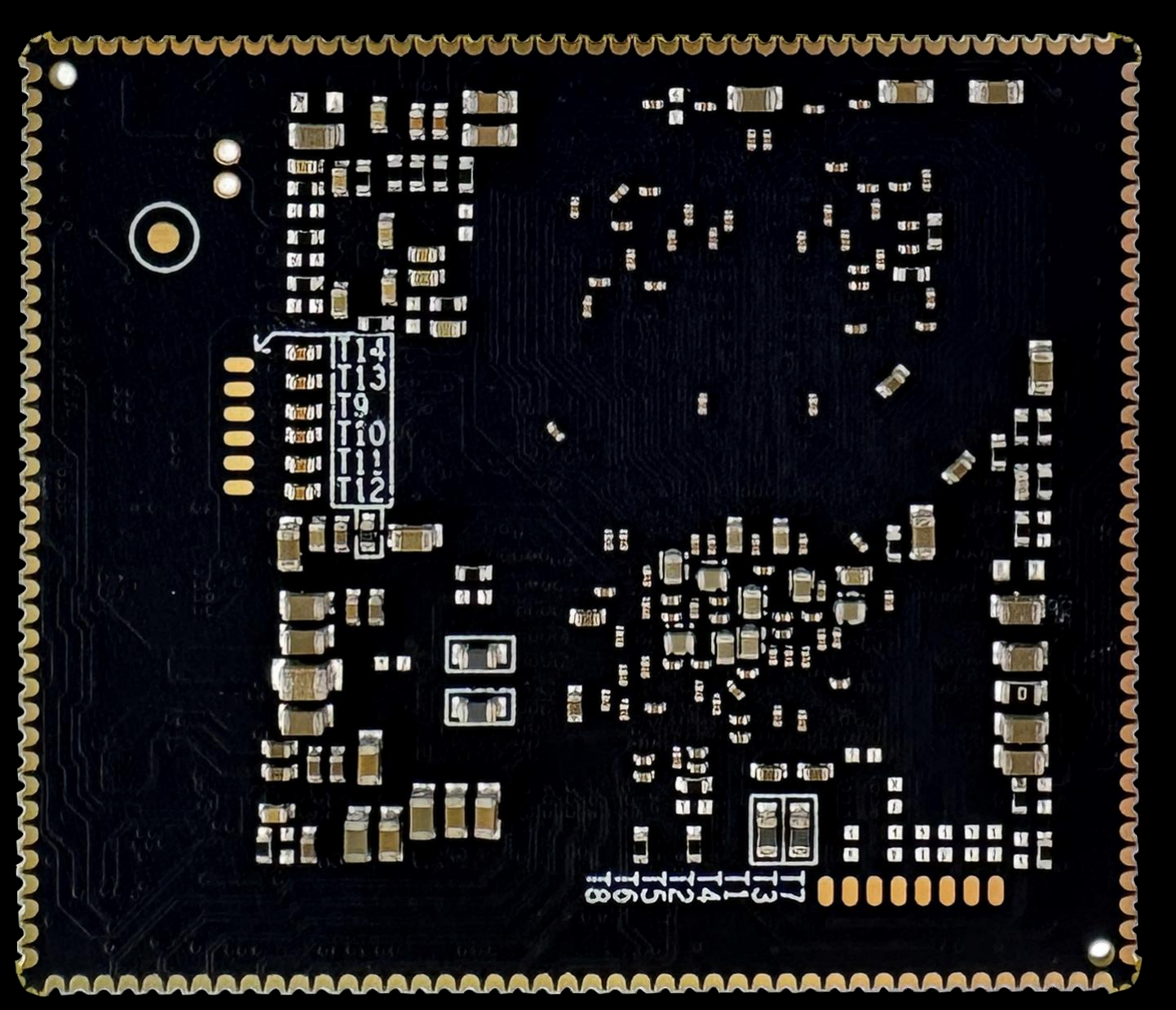

T1

SARADC1_IN0

ADC

SARADC1_IN0

T3

SARADC1_IN2

SARADC1_IN2

T4

SARADC1_IN4

SARADC1_IN4

T5

SARADC1_IN6

SARADC1_IN6

T6

SARADC1_IN3

SARADC1_IN3

T7

SARADC1_IN7

SARADC1_IN7

T8

SARADC1_IN5

SARADC1_IN5

T9

SARADC0_IN4

SARADC0_IN4

T10

SARADC0_IN5

SARADC0_IN5

T11

SARADC0_IN6

SARADC0_IN6

T12

SARADC0_IN7

SARADC0_IN7

T13

SARADC0_IN3

SARADC0_IN3

T14

SARADC0_IN2

SARADC0_IN2
